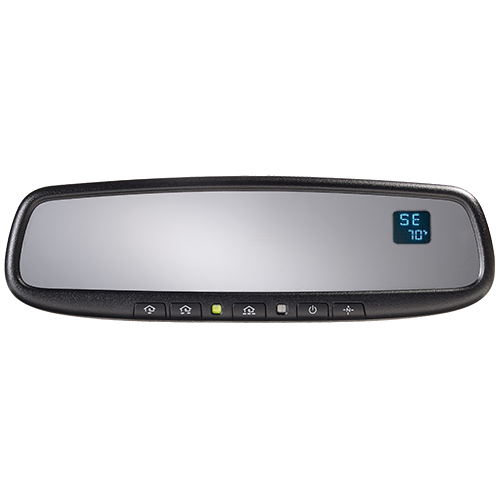

Gentex Auto-Dimming Mirror with HomeLink®, Compass & Temp

Features:

• Automatic dimming of mirror when sensors detect glare or bright lights from behind.

• Digital compass display that indicates the direction you are heading in.
• Temperature display that shows the outside ambient temperature.
• HomeLink® universal garage door opener system that allows you to program up to 3 compatible devices.


What's included with purchase:

• Used Gentex auto-dimming mirror as displayed in product picture.
• Used 10-pin connector with at least 2" of wire.
• Used temperature sensor that will need to be mounted by front bumper.
• A pin-out diagram identifying what each wire is for.


What wiring you'll need to run:

• 1 +12V wire going to a source that comes on with accessories or ignition.
• 1 +12V wire going to a source with constant power on.
• 1 ground/negative wire.

• 2 wires going from the mirror to the temperature sensor mounted by the front bumper.
